Injection Pump Removal, Setting and Timing Tool Inc 303-1317 Pump Tool Ford Mazda

Specialist Tools Australia

  • $355.00
Tax included. Shipping calculated at checkout.

Contact Made4uo

Diesel Engine Timing Setting and Injection Pump Removal / Installation Kit
Ford, Mazda, Land Rover, Fiat etc.

SA-8033 & SA-8033A

This kit includes High Pressure Supply pump Removal Tool  SA-8033A

Increased application of this combination kit to cover engines which include the 2.4 TDCi engines, from 2006. Utilizes the existing timing pins, but now includes updated tools for the H.P. pump replacement procedures (H.P. Pump Sprocket cover remover/installer, sprocket retainer and pump sprocket removal tool).

Also includes additional tools that are required when carrying out engine timing or crankshaft seal replacement procedures.

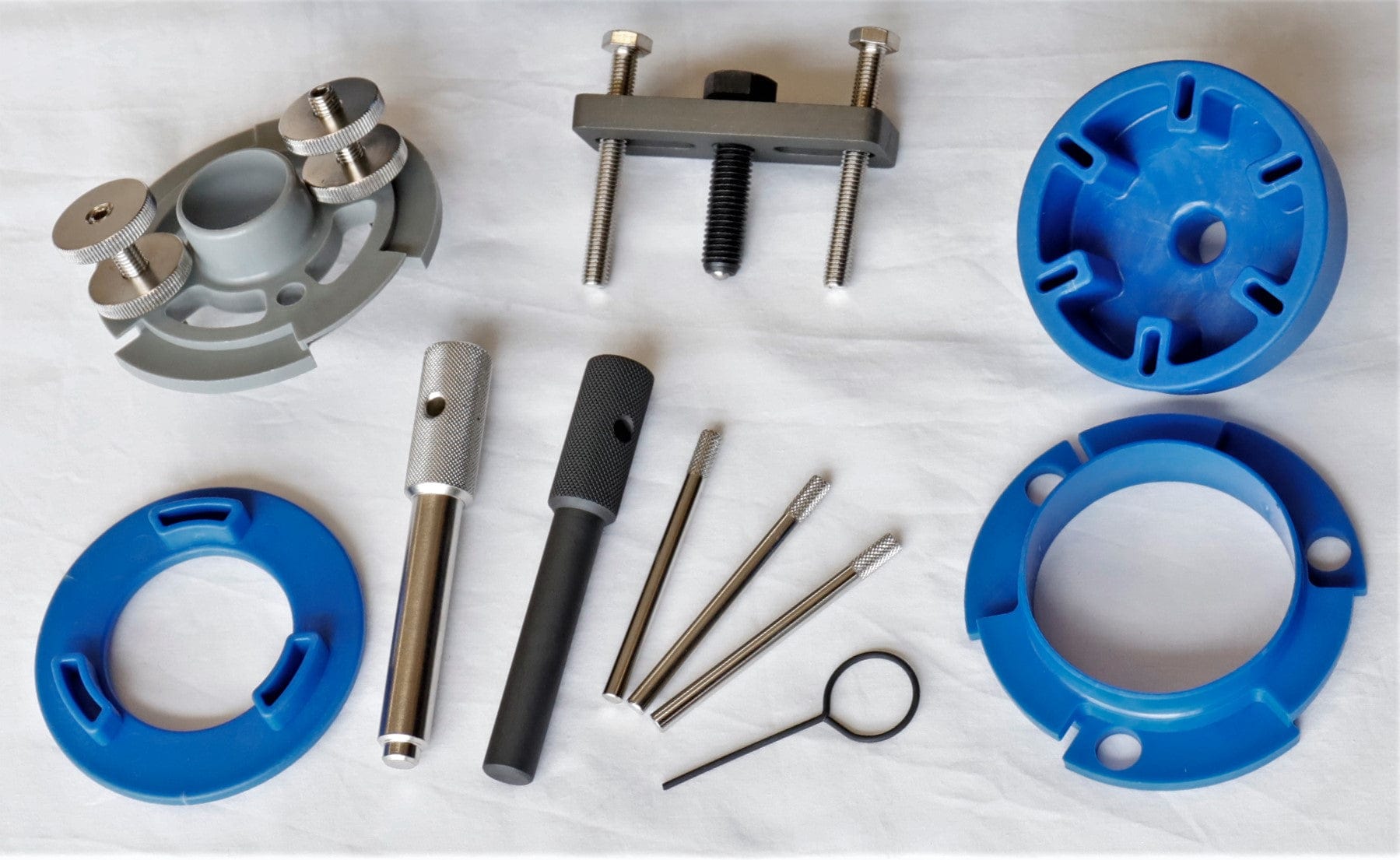

Combined Kit contains:
Fuel Injection Pump Sprocket Locking Tool 2.2 L Duratorq-TDCi (Global Puma)
Stage V Diesel: (303) Engine: (3)
Power Train: 2006.5 (04/2006-) : Transit 3.2 L Duratorq-TDCI (Puma)
Diesel: (303) Engine: (3) Power Train: 2006.5 (04/2006-): Transit 2.2 L Durat

OEM Tool codes:
Engine Cover Aligner 303-682
Engine Cover / Crankshaft Seal Removal / Installation Tool 303-679A
High Pressure Pump Sprocket Retaining Tool 303-1151
H.P. Pump Removal Tool 303-249
Flywheel Locking Pin (Black) 303-675
Flywheel Locking Pin (Silver) 303-698


  • Ford Duratorq (Puma) TDCi, 2.0, 2.2, 2.4 & 3.2L Diesel Engines In:
  • Mazda BT50 (5Cyl)
  • Citroën Relay Jumper III
  • Fiat Ducato
  • Ford Mondeo Transit
  • Jaguar X-Type
  • Land Rover Defender
  • LDV Convoy
  • Peugeot Boxer III

Engine Code:


2.2 Engines (Chain driven H.P. pump) – QJBA(BG), QJBB, QJBC, QJBD

2.2 Engines (Camshaft driven H.P. pump) – 4HM, 4HU, 4HV, P8FA, P22DTE, QVFA, QWFA

2.4 Engines – 244DT, D0FA, D2FA, D2FB, D4FA, F4FA, FXFA, H9FA, H9FB, HEFA, HFFA, JXFA, PHFA, ZSD 424

3.2 Engines – SAFA


  • Engine Cover Aligner
  • Engine Cover / Crankshaft Seal Removal / Installation Tool
  • High Pressure Pump Sprocket Retaining Tool
  • H.P. Pump Removal Tool
  • Flywheel Locking Pin (Gold)
  • Flywheel Locking Pin (Silver)
  • Locking Pin Set (3 x Pins)
  • Tensioner Locking Pin
  • Fuel pump gear retainer and locator bolts for 3.2 BT50/Ranger

Specialist Tools Australia (Division Of Responsive Engineering Australia Pty Ltd).
All products advertised are stocked in our Canberra warehouse – If you need more information, technical advice or assistance – we are here to help - We encourage customers to phone us prior to finalising your purchase to ensure you are purchasing the appropriate tools for your purpose Phone 02-6280 4334

Free shipping within Australia, All parcels will be sent via regular Australia Post. Express post available upon request, additional charges will apply. International Shipping is also available.
